1	View-invariant Representation and Learning of Human Action Cen Rao Dr. Mubarak Shah Computer Vision Lab University of Central Florida
2	Human Behavior Gestures Activities Actions Facial expressions Visual speech etc.
3	Important Steps for Action Recognition Extraction of visual information Features Tracking Representation of visual information Reliable for later processing Compact View-invariant Interpretation of visual information Recognition Learning
4	Hand Actions Recognition While performing action, hand generates a 3-D trajectory with respect to time. We want to analyze 2-D projection of this 3-D trajectory. View invariant issue.
5	Action Trajectory Generate hand trajectory Smooth the trajectory Compute Spatiotemporal curvature
6	Generation of Hand Trajectory For each frame: Apply skin detection to detect hand pixels. Apply connected component algorithm to get hand region. Compute the centroid of hand region. Connect centroid in consecutive frames to generate hand trajectory.
7	Smooth the Trajectory Reduce the effect of noise while keeping the meaningful changes. Anisotropic diffusion. Iteratively smoothes the data with a Gaussian kernel, and adaptively changes the variance of Gaussian based on the gradient at current point.
8	Spatiotemporal Curvature
9	View-invariant Representation of Actions

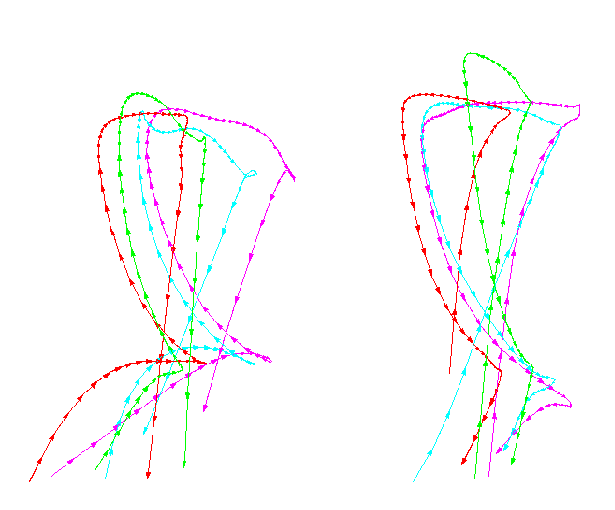

10	View-invariant Representation of Actions (2) Erasing white board.
11	View-invariant Representation of Actions (3)
12	View-invariant Representation of Actions (4)
13	View invariant representation
14	View Invariant Characteristics of Actions Number of instants. Similar actions have same number of dynamic instants. Sign of instant. Sign is defined by the angle of a instant. Turning right is ‘+’, and turning left is ‘-.’ The sign of an instant i will remain the same if the camera view will not cross the plane containing instant i-1,i,and i+1.
15	Affine Camera Affine camera assumes that the variation in depth of the points is small compared to the depth of the centroid of the point set. The origin of X,Y,Z axis is at the centroid of 3D points. Projection matrix:
16	View Invariance of the Sign of Instant -- Rotation Around Y Axis
17	View Invariance of The Sign of Instant (2) Rotation around X axis (tilt) Use the same argument for pan. The distance d₂>0 , if the tilting angle φ belongs to (-90º,90º)
18	The number of uniquely defined actions For a trajectory with n instants, the number of permutations of signs is 2^(n-2). Hence, the number of unique actions is 2^(n-2).
19	View Invariant Characteristics Trajectories of the same action must have the same number of instants and the same permutation of the signs of instant. However, the number and the sign are not sufficient to define an action. View invariant matching to measure the similarity between two trajectories.
20	View Invariant Matching -- Rank Theorem (1) (Tomasi & Kanade) Take 3D trajectory as 3D object. S is a set of 3-D instants and Πs are projection matrices for different view points, then we can arrange image coordinates in observation matrix M as follows:
21	Rank Theorem (2) If the rank of observation matrix M is 3, assuming there are two shape matrixes S_i and S_j, the shape S and projection matrix P and be arranged as follows: Due to the fact that the rank of P is 4, the rank of S must be 3. For 3D shape, this means S_i=RS_j so that S_i and S_j are for the same action.
22	Matching two action trajectories Matching error between two actions i and j is: where s₄ is the fourth singular values of M. This distance gives the average amount necessary to additively change the coordinates of each instant in order to produce pictures of a single action.
23	Action Learning For every action trajectory: Determine its category based on the number of instants and the permutation of signs. Compare this action with all other actions and find 3 best matches whose matching error are under threshold. Use transitivity property get the transitive closure for each action.

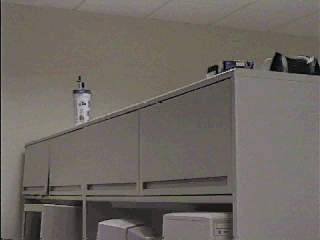

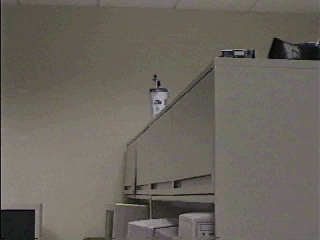

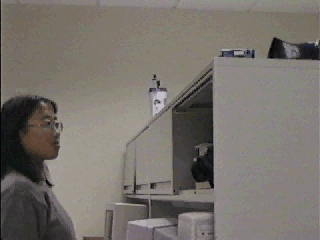

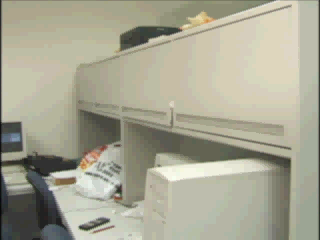

24	Experiments 1st open the cabinet. 2nd pick up an object (umbrella ) from the cabinet. 3rd put down the object in cabinet, then close the door. 4th open the cabinet, with touching the door an extra time. 5th pick up an object (disks) with twisting hand around. 6th put back the object (disks) and then close the door. 7th open the cabinet door, wait, then close the door. 8th open the cabinet door, wait, then close the door. 9th pick up an object from top the of the cabinet. 10th put the object back to the top of cabinet. 11th pick up an object from the desk. 12th put the object back to the desk. 13th pick up an object, then make random motions. 14th open the cabinet. 15th pick up an object, put it in the cabinet, then close the door. 16th open the cabinet.
25	Experiments (2) 17th pick up an object (umbralla) from the cabinet. 18th put the object (umbralla) back to the cabinet. 19th pick up a bag from the desk. 20th make random motions. 21st open the cabinet. 22nd pick up an object ( a bag of disks). 23rd put donw an object ( a bag of disks) back to the cabinet, then close the door. 24th pick up an object from the top of the cabinet. 25th put the object back to the cabinet top. 26th make random motions with two hands. 27th continue the action 26. 28th close the door, with some random motion. 29th open the cabinet. 30th pick up an object (remote controller) from the cabinet, put it down on the desk, pick up another object (pencil) from the desk, put it in the cabinet, then close the door.
26	Experiments (3) 31st open the cabinet door, with the door half pushed, pick up an object (pencil) from the cabinet. 32nd pick up an object (remote controller) from the desk, put it in the cabinet, then close the door. 33rd open the cabinet door, wait, then close the door. 34th open the cabinet door, make random motions, then close the door. 35th pick up some objects. 36th open the door, pick up an object, with the door half opened. 37th close the half opened door. 38th open the cabinet door. 39th pick up an object, move it within the cabinet, pick up another object, move it, then close the door. 40th open the cabinet door, wait, then close the door. 41st pick up an object from the top of the cabinet. 42nd close the cabinet. 43rd open the cabinet.
27	Experiments (4) 44th put down a disk. 45th close the half closed door. 46th open the door, wait, then close the door. 47th open the cabinet door, pick up an object, then put it back, then close the cabinet door. 48th open, then close the cabinet door. 49th pick up an object from the floor and put it on the desk. 50rd pick up an object from the floor and put it on the desk. 51rd pick up an object from the floor and put it on the desk. 52nd pick up an object from the desk and put it on the floor. 53rd pick up an object from the floor and put it on the desk. 54th, 55th, 56th, 57th erase the white board. 55th erase the white board. 56th erase the white board. 57th erase the white board. 58th pour water into a cup. 59th pour water into a cup. 60th pouring water into a cup.

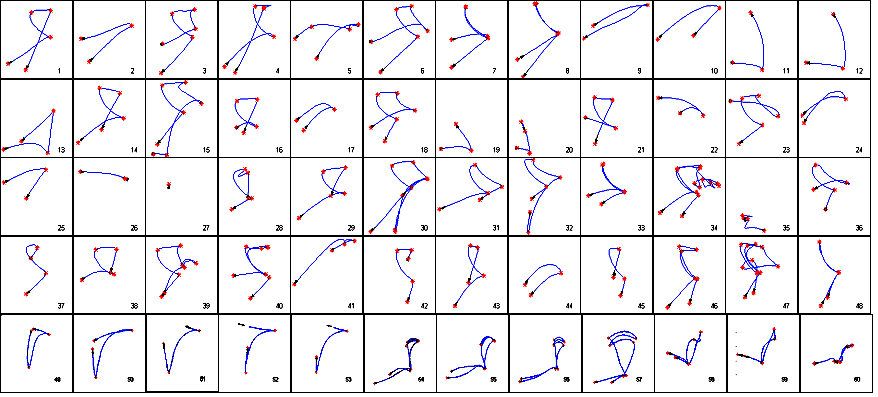

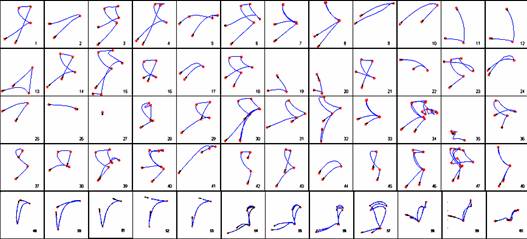

28	Action Trajectories
29	Experiment results (1)
30	Experiment results (2)
31	Experiment results (3)
32	Results System was able to Learn actions:1,14,16,21,29,38 are the same Learn actions: 3,18,6,23,32 are the same Recognize pick up action 2,9,11,19,22,24,44 Recognize put down actions: 10,12,25,35 Learn actions: 7,8,33,48 are the same. Determine unique actions: 5,13,15,20,26,27,32,37,39,40,42,45,47,52 Error Incorrect actions: 41, 55,58,60 Partially incorrect actions:31,36,48,43
33	Future Work Tracking system Improve the performance. Track multiple skin regions, face and two hands. Representation system Find more view invariant characteristics, especially for intervals. Segment a long action sequence into small pieces. Recognition system Invent a recognition method based on multiple trajectories so that the system can handle more complicated actions.
